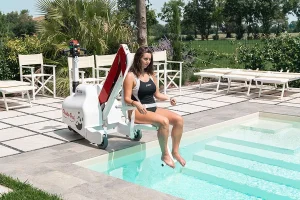

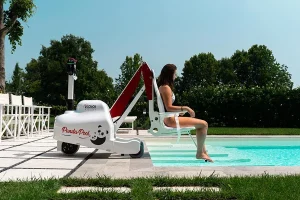

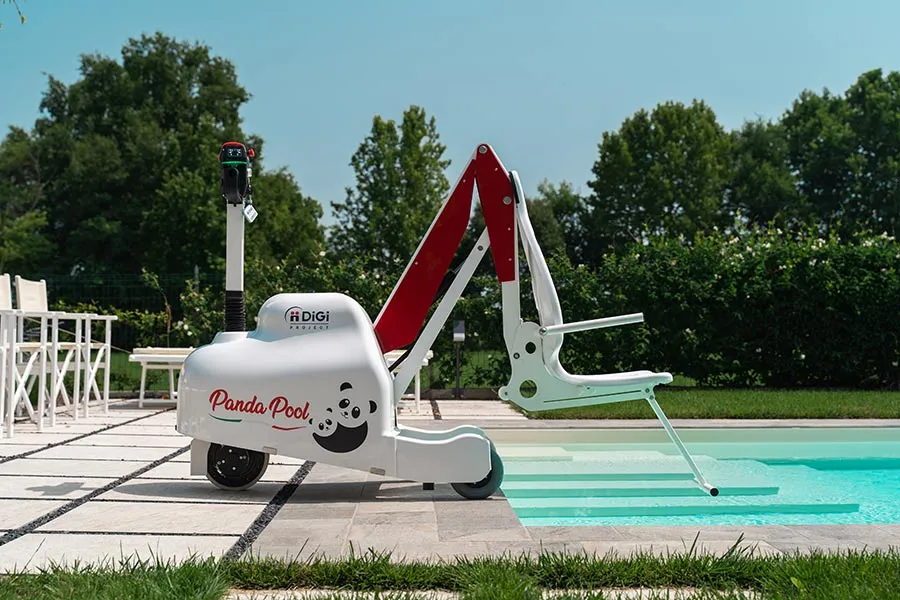

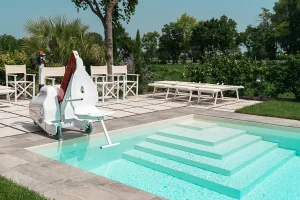

FULLY AUTOMATIC LIFTER
It has a load capacity of 150 kg and 8 safety levels, making it not only the top of the range, but the universal reference in pool lifts: the best synthesis of quality, innovation, reliability and technological development.
TECHANICAL FEATURE
- 2 speeds motorised movements

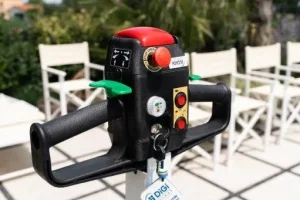

- Control bar far forward motion and seat

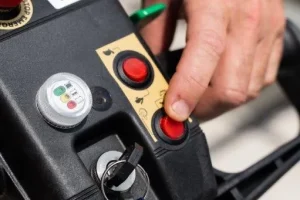

- Starter key
- Battery charge level indicator
- Emergency stop button
- Anti-crushing system for backward movement
- Automatic braking system integrated in the motorised wheel
- Electrohydraulic box
- Emergency manual pump for use in case of power failure
- Front rubber stoppers far forward safety lock
- lnfrared front hole sensor for forward safety stop
- Retractable leg support
- Adjustable armrests
- Internal battery charger with LED indicator
- Average autonomy: 50 working cycles
- 2-point safety belt
- Stainless steel frame for in-water parts
- Galvanization and powder coating
TECHANICAL DETAILS
- Maximum capacity: 150 kg
- Maximum travel: 1385 mm
- Depth of seat inside the water: 775 mm
- Time of lowering – lifting with weight into water: 20 sec
- Weight of the lift: 260 kg
- Battery: 24 V

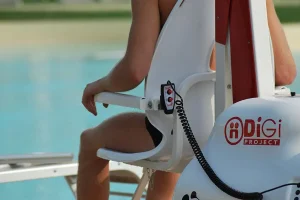

- Handset for lifting and lowering
- 4-point safety belt
- 5-point safety belt
- Cover
CERTIFICATES AND PATENT
- Patent MN2013UI
- Regulation EU 2017/745 Medical Devices – class 1 – DM 1087746/R
- Directive 2006/42/EC – Machinery Directive
- Directive 2004/108/EC – EMC Electromagnetic Compatibility
- European registered design No.0021782020001
